Showcase of a Custom Outdoor Karting Track Design by KUPAO KARTING

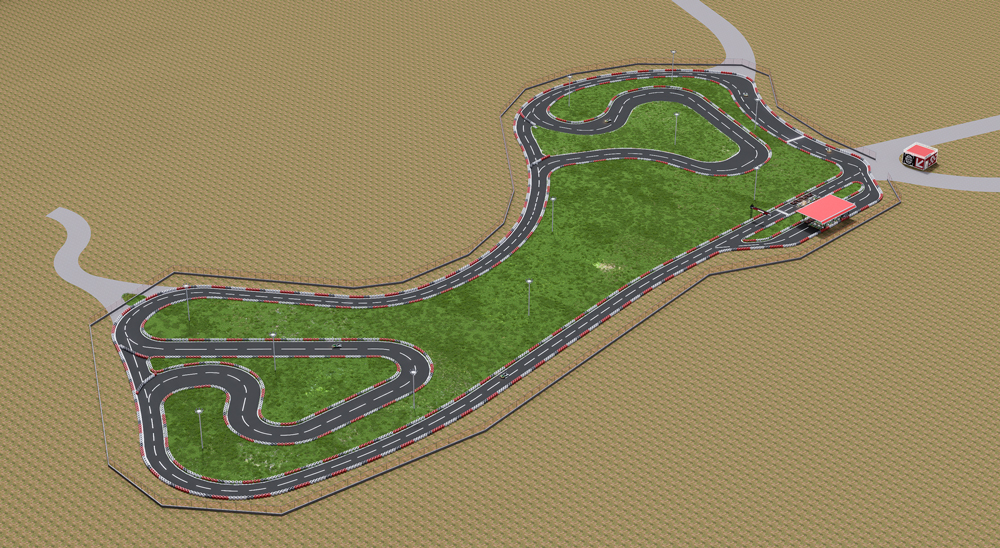

The 3D bird's-eye view rendering presented here showcases an outdoor karting track design realized by KUPAO KARTING’s professional spatial designers. The project is backed by a standardized, one-stop service package that empowers entrepreneurs at every stage—from kart manufacturing and sales to site planning, track construction, and post-launch operations and support. The facility covers a total area of 13,000 m², with the core track surface spanning 4,500 m² and a total track length of 886 m. By balancing the thrill of racing, safety standards, and operational practicality within a limited footprint, this design serves as a model for comprehensive outdoor karting tracks.

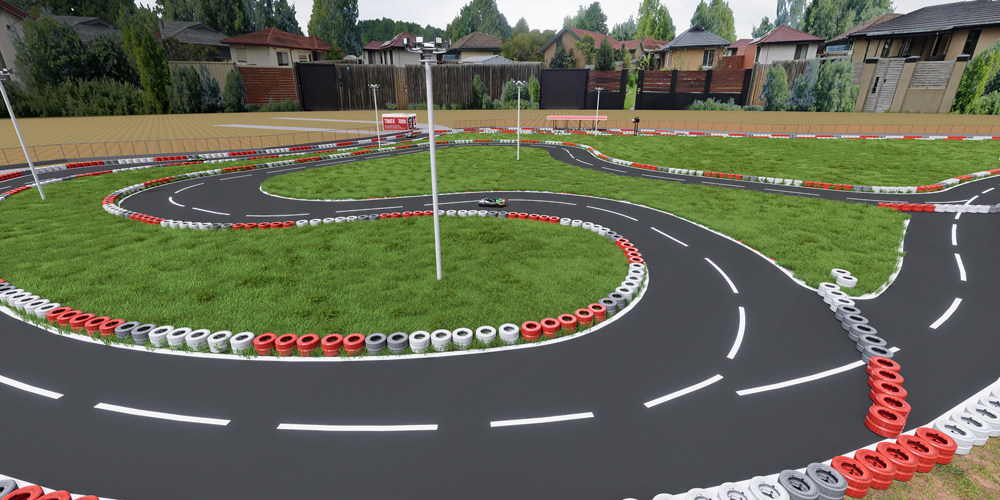

For a well-conceived karting track, the primary focus is the planning of zones and traffic flow. In this design, KUPAO KARTING’s spatial designers divided the track into three distinct functional sections to create a driving rhythm that alternates between high-speed and technical segments. A low-speed technical zone is located in the bottom-left corner, featuring a dense sequence of linked S-curves and hairpin turns; this compact layout tests a driver's ability to navigate tight lines and control braking, making it ideal for novice practice and technical skill assessments. The middle section features an exceptionally long straightaway designed for overtaking and high-speed sprints, providing ample acceleration distance within the 886 m total length to satisfy both recreational and competitive racing needs. A complex high-speed corner sequence occupies the top-right corner, where large-radius sweeping curves connect to the starting area; these fluid arcs facilitate a seamless transition between speed and technical handling, while the continuous, loop-style layout ensures a rich and varied driving experience without intersecting paths.

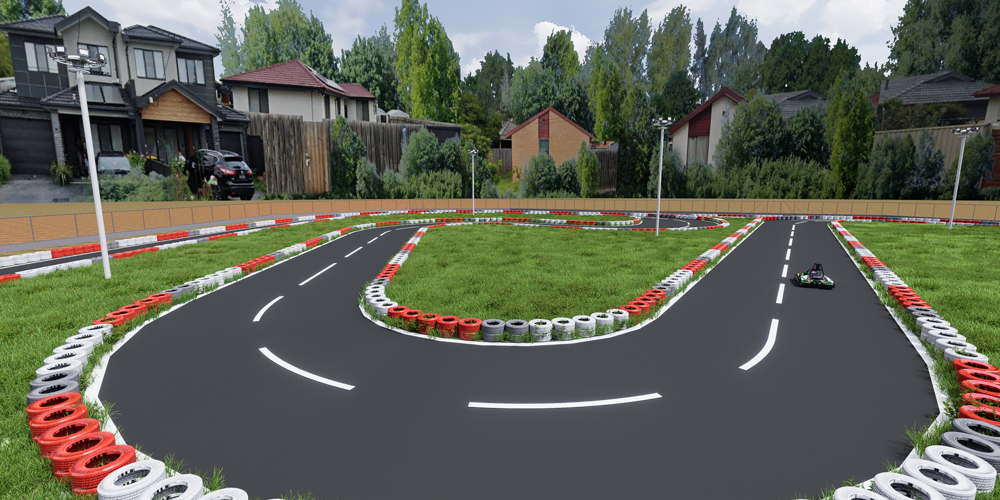

Safety protection systems are a critical requirement in karting track design; KUPAO KARTING has implemented a dual-layer protection structure in this project to comprehensively mitigate operational risks. The entire track features a standard black asphalt surface with clearly marked white lane dividers and boundary lines. Red-and-white tire barriers line the inner and outer edges of every curve—with denser placement in sharp turns—and grass buffer zones are incorporated. A fully enclosed perimeter fence separates the racing area from the surrounding open space. Additionally, the design includes a comprehensive high-mast lighting system, enabling both day and night operations and significantly extending the facility's operating hours; this creates a practical design that balances safety with profitability.
The quality of functional facilities directly determines the commercial value of a karting track design. In this project, KUPAO KARTING positioned the starting area along the middle section of the track's right side. The starting zone features a platform with a red canopy and standard grid markings, accommodating various operational scenarios such as time trials and team-building competitions. A standalone red-and-white service cabin is located at the track's edge, serving as a ticket office, equipment storage unit, and staff station. Two dedicated access paths ensure clear entry and exit routes for visitors and vehicles, preventing any conflict with the karts on the track. KUPAO KARTING provides a one-stop service, offering end-to-end support that ranges from initial site surveying and track design to kart manufacturing and sales, operational training, and after-sales maintenance.
This project demonstrates that an excellent karting track design must balance space utilization, driving excitement, safety standards, and commercial viability. Backed by a professional spatial design team, KUPAO KARTING creates custom track designs tailored to specific site dimensions. Complemented by full-chain support—including kart manufacturing, venue operations, and after-sales service—the company offers a comprehensive solution for opening karting venues, delivering designs that are visually appealing, safe, and profitable for both indoor and outdoor projects.
